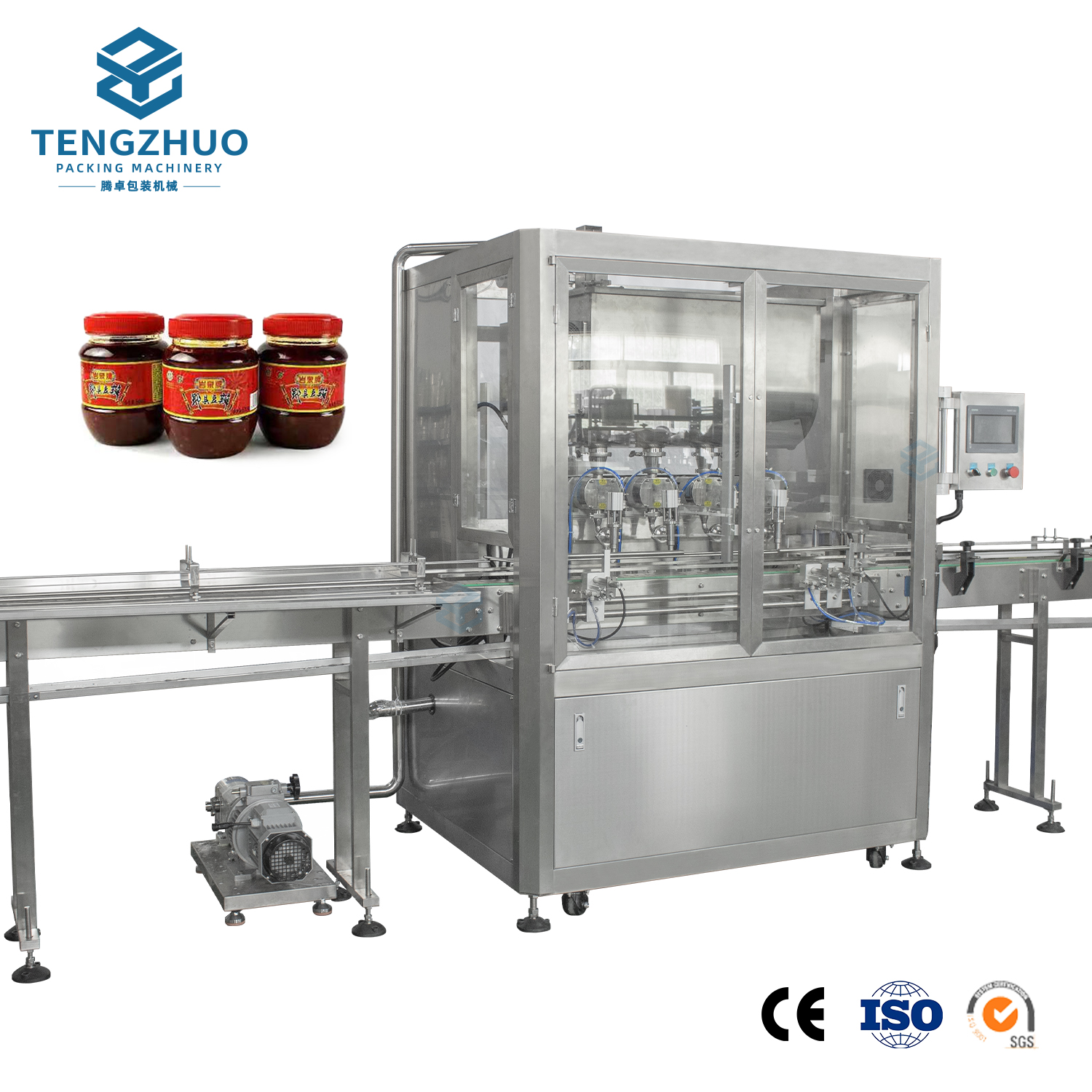

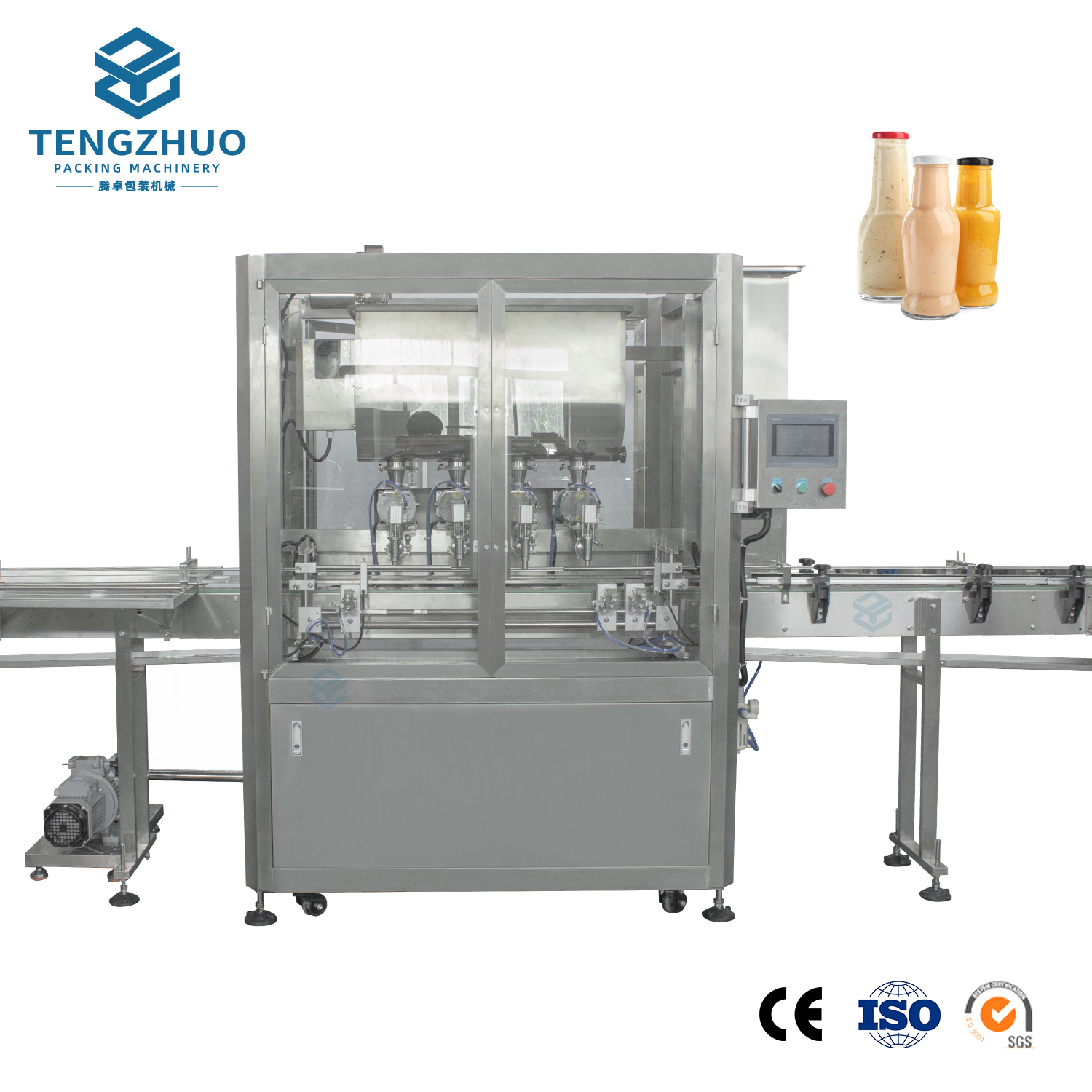

Fully Automatic Servo-Driven Rotor Pump Filling Machine
deal for food, cosmetics and daily chemical industries, this machine handles viscous and granular materials like sauces, honey, creams and pastes.It features fast changeover, touchscreen control with parameter storage, and easy-to-clean pump heads. Versatile for most bottles, it supports multi-head configurations for different capacities, ensuring accurate filling with simple operation and low maintenance.
Highlights

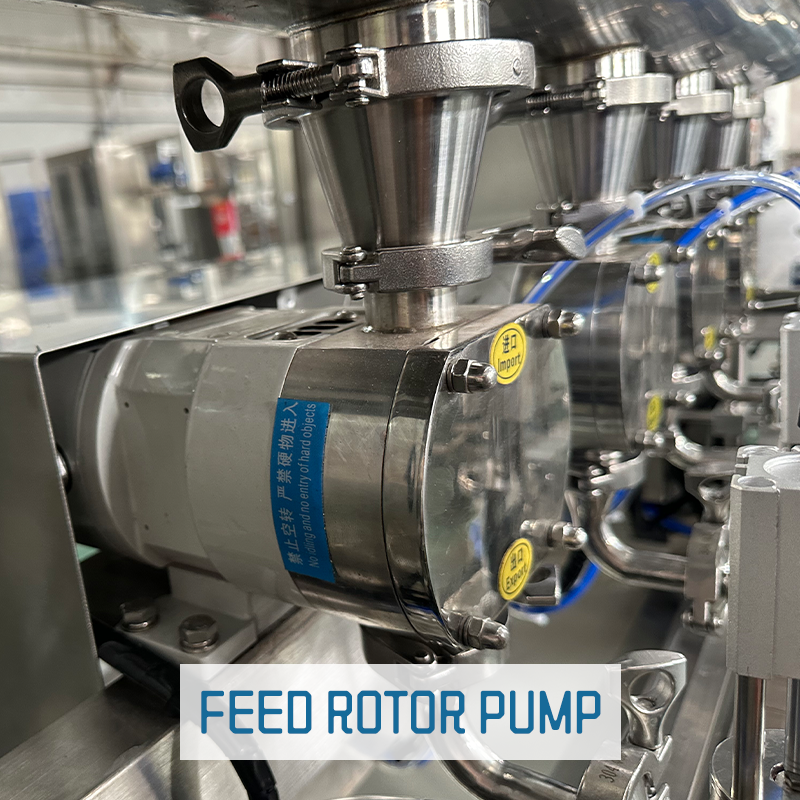

- High Precision & Efficiency :The servo rotary pump offers precise metering and easy bottle changeovers; the touchscreen can store multiple sets of filling parameters, reducing setup time.
- Versatile Compatibility:Easy to clean, suitable for viscous materials containing particles, compatible with multiple bottle types, and used for filling food and personal care products.
- Easy Operation & Maintenance:No-tool adjustment for different filling specifications, multi-head configurations for different capacities, and easy-to-clean pump heads with no dead corners, ensuring low maintenance and reliable use.
Technical Specifications
| Category | Parameters |
|---|---|
| Equipment Type: | Servo-driven rotary pump filling machine |
| Filling capacity： | 100 ml–5,000 ml |
| Filling accuracy: | ±1% |
| Filling method： | Servo-driven rotary pump metering with multi-head filling |
| Production speed: | 1,200–1,500 bottles per hour (based on a 500-ml capacity) |
| Conveyor belt: | 82.6 mm wide POM slat belt, ground clearance 800 mm–850 mm |
| Conveyor belt motor: | Variable-frequency speed-controlled motor |
| Total power: | approx. 6 kW / AC 380 V, 50/60 Hz |
| Program Control: | PLC + Touchscreen HMI |
| Frame material: | 304 stainless steel |
| Material contact parts: | 304/316 stainless steel, food-grade silicone tube |
| Safety feature: | Low material level shutdown alarm |
In-Depth Details
Equipment Features and Adjustment Instructions
1. Easy Changeover: Switch between bottle types and filling specifications with just a few fine adjustments; no additional accessories are required, and filling heads can be selected as needed.

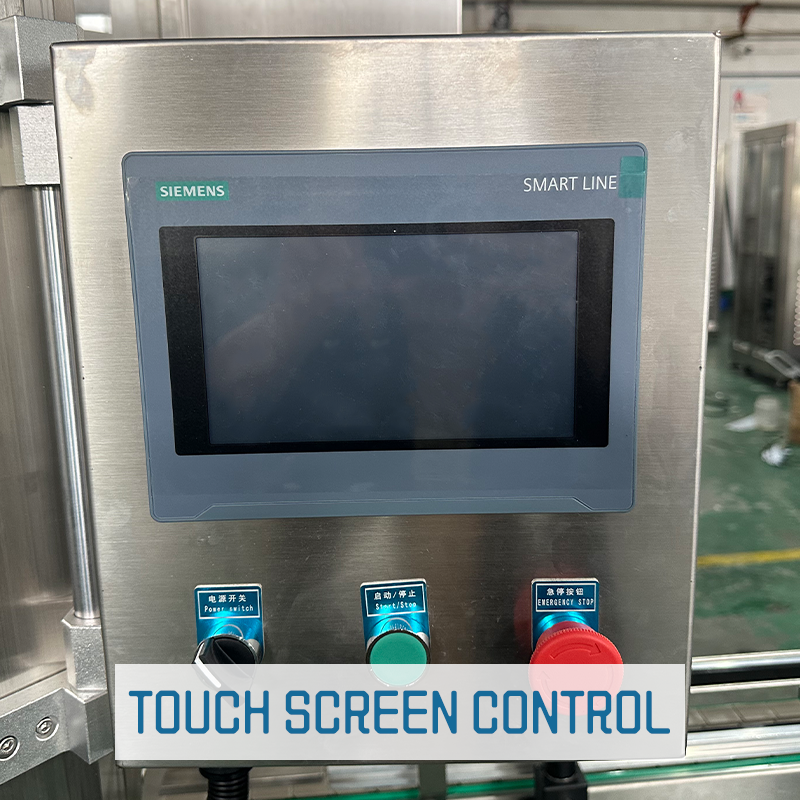

2. Intelligent Control: PLC + color touchscreen; fully touchscreen-based control of parameters and production status for easy operation and maintenance.

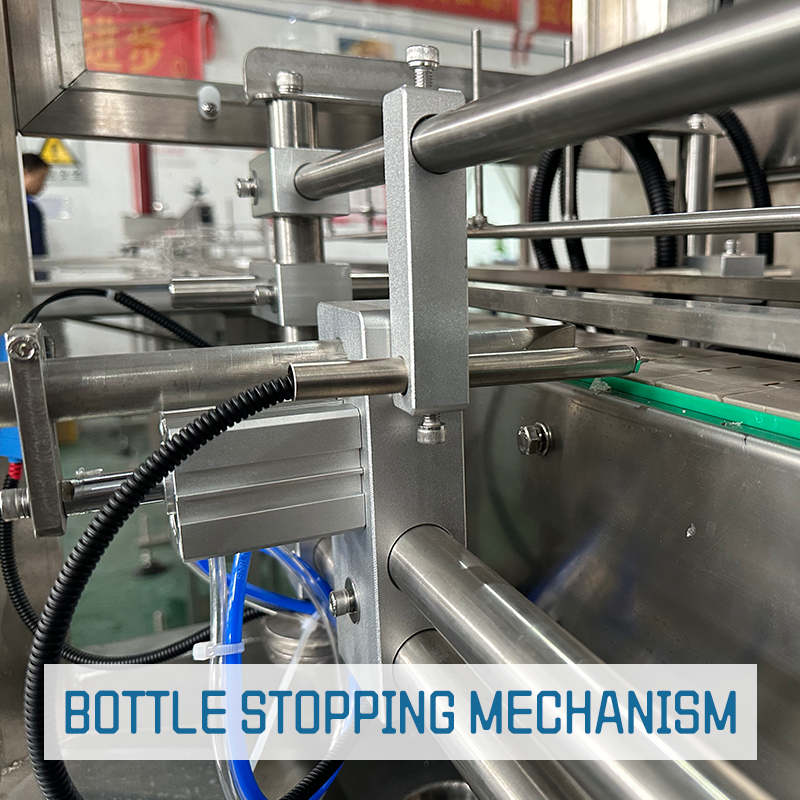

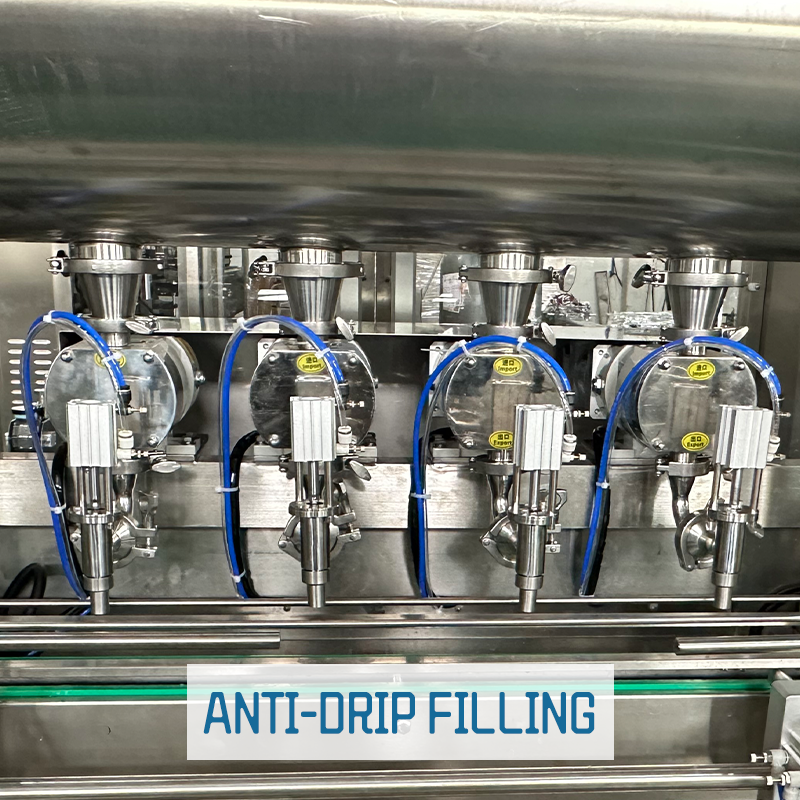

3. Precise Filling: Bottle-mouth positioning combined with dedicated filling valves ensures accurate alignment and leak-free filling.
4. Wide Versatility: Linear bottle infeed and outfeed accommodate various irregularly shaped containers, covering a wide range of paste and liquid filling applications in the personal care and food industries.
