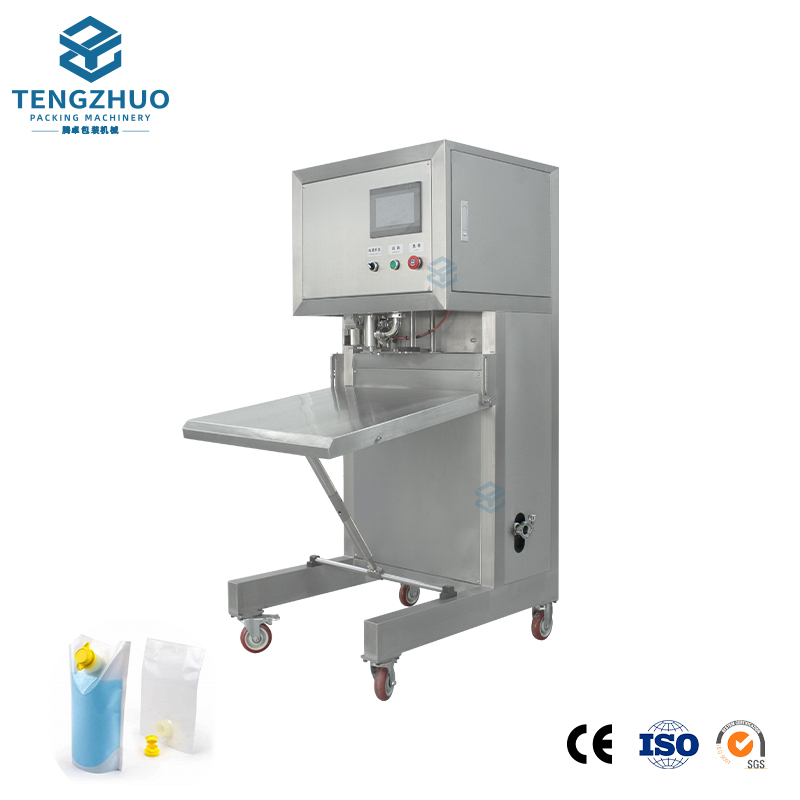

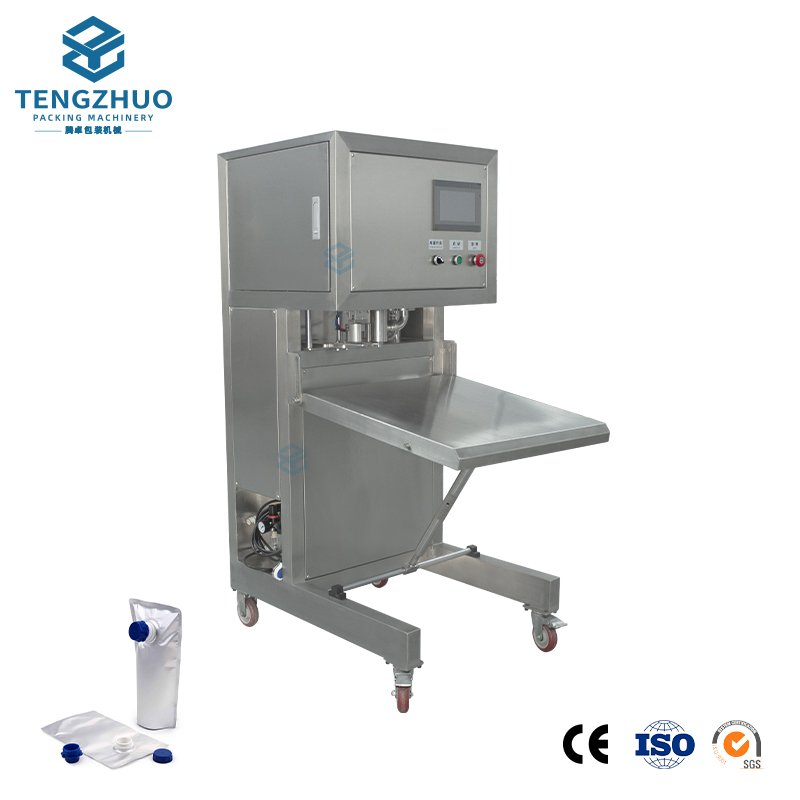

Aseptic Bag Filling Machine
The bag filling machine is a Aseptic bag filling of liquid generally adopts flow metering method.Aseptic bags can also be accurately metered by rotor pumps and weighing methods to fill pastes or fluid materials such as honey, syrup, concentrated juice, sauces, shampoo, shower gel, etc.
Highlights
- Precise and versatile filling: Weighing-based metering with an accuracy of ±0.3%, suitable for viscous pastes and liquids containing particles, such as honey and sauces.
- Material Compliance and Hygiene: The entire machine is constructed of 304 stainless steel, meeting the requirements for aseptic filling production.
- High-quality electrical control components: Siemens and Toledo brand electrical control components ensure stable and efficient automated operations.
Technical Specifications
| Category | Parameters |
|---|---|
| Power Supply | AC 220 V ±10% |
| Power | ≤1.3 kW |
| Operating pressure | 0.6–0.7 MPa |
| Air consumption | 0.2 cubic meters |
| Filling range | 0–30 L |
| Filling accuracy | ≤±0.3% |
| Equipment dimensions | Single-head: 700 × 1060 × 1800 mm; Double-head: 1700 × 1060 × 1800 mm |
| Material | SUS304 stainless steel, aluminum oxide electrodes |
| PLC CPU | Siemens |
| Touchscreen | Siemens |
| Weighing sensor | Toledo |
| Weighing module | Siemens |
In-Depth Details
Equipment Features and Adjustment Instructions

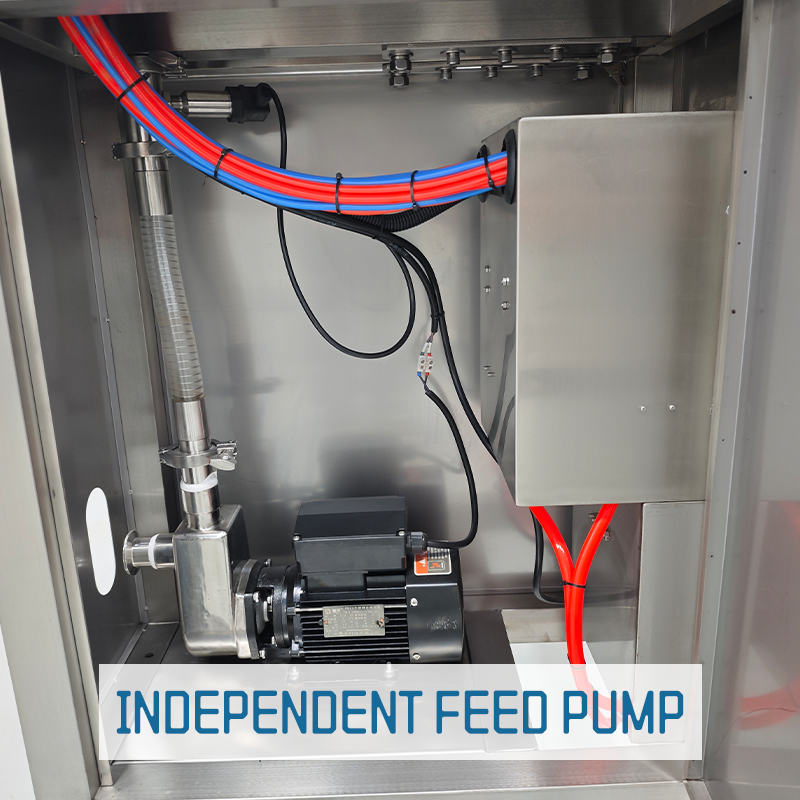

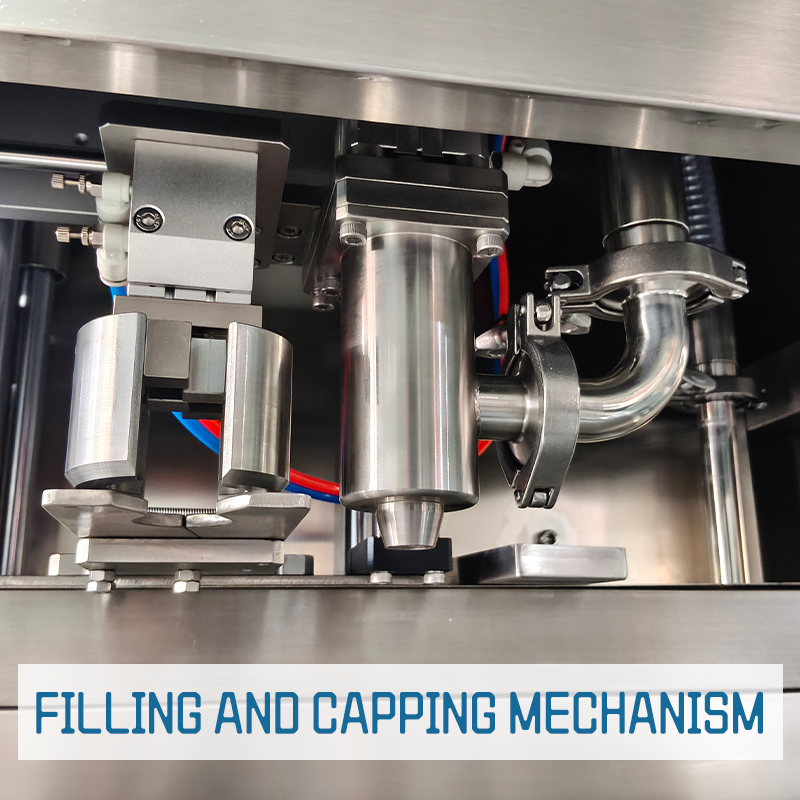

1. Utilizes a rotary pump weighing system with a filling range of 0–30 L and an accuracy of ±0.3%. Suitable for various viscous pastes containing particles, it enables automated production line operations including lid picking, filling, and capping.

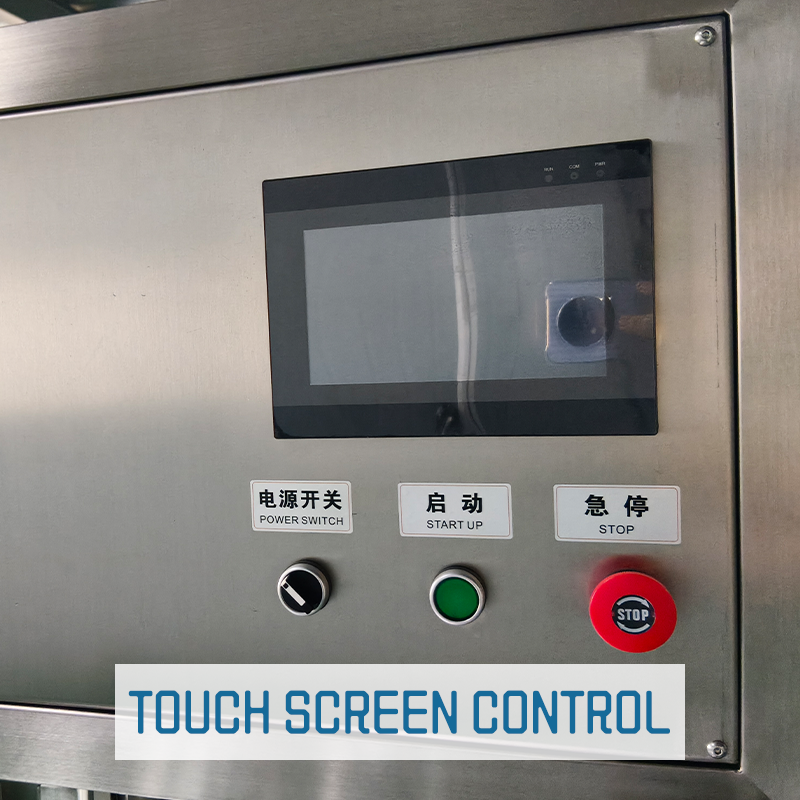

2. Equipped with Siemens electrical controls and Toledo weighing components, the filling volume can be adjusted via a touchscreen.
3. Operating air pressure is maintained between 0.6 and 0.7 MPa. Single-head and dual-head models are available to adjust production capacity as needed.
