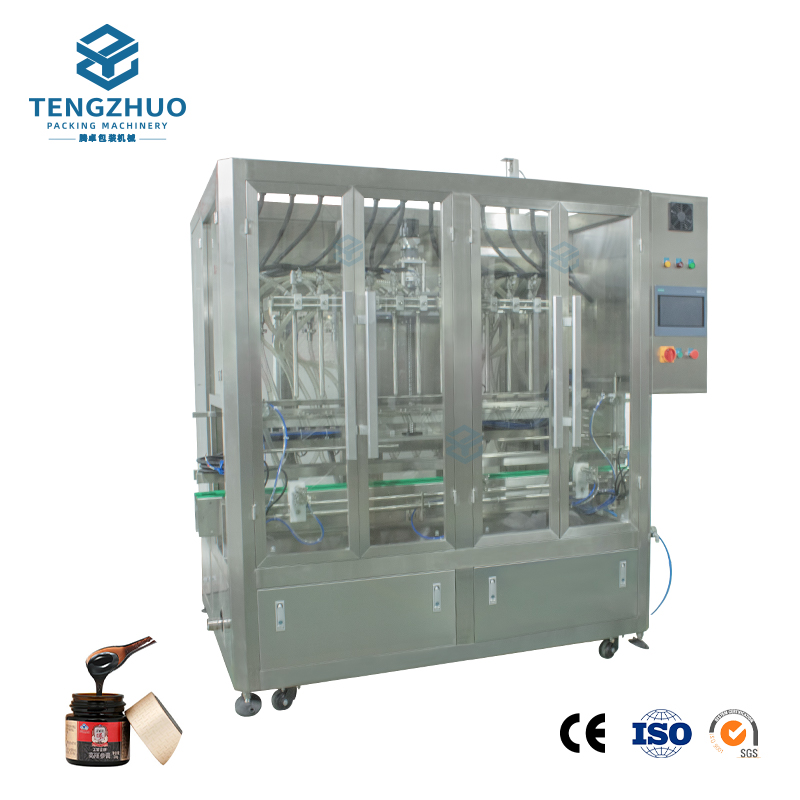

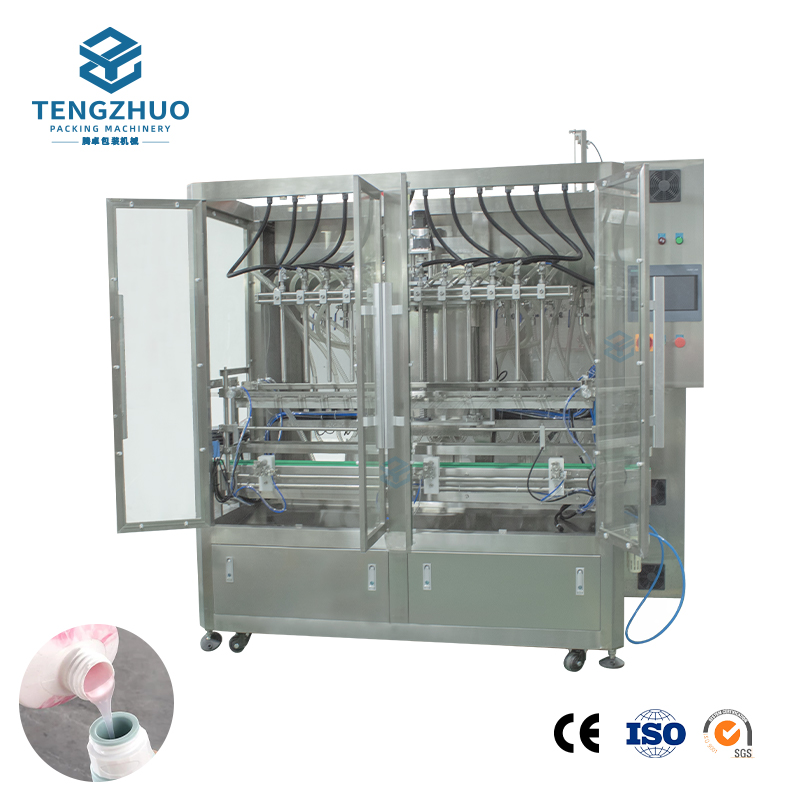

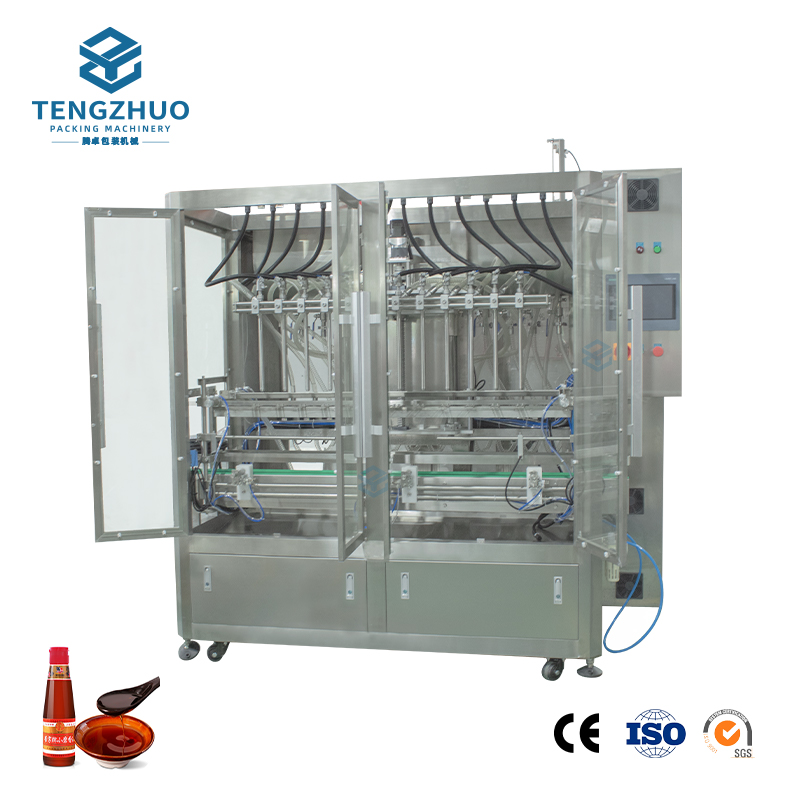

12-head fully automatic servo pump filling machine
Suitable for filling liquids, emulsions and oils without particles or sediment. Widely used in cosmetics, food and daily chemical industries, such as shampoo, lotion, honey, sauce and edible oil.It features high-speed servo control, touch screen operation with multi-parameter memory, and compatibility with various bottle types. Easy to clean and maintain, reducing labor intensity and production costs.
Highlights
- High Precision & Efficiency: The servo pump system ensures accurate flow control and high-speed operation.
- Easy Operation & Versatility: The touch screen allows direct setting of filling volumes with multi-parameter storage for quick changeovers. It supports various bottle types, including irregular shapes, with simple adjustments.
- Easy Cleaning & Maintenance: The pump head has no dead corners for hygienic cleaning, and the machine is designed for easy maintenance.
Technical Specifications
| Category | Parameters |
|---|---|
| Machine type | Servo filling machine |
| Filling accuracy | ±3 |

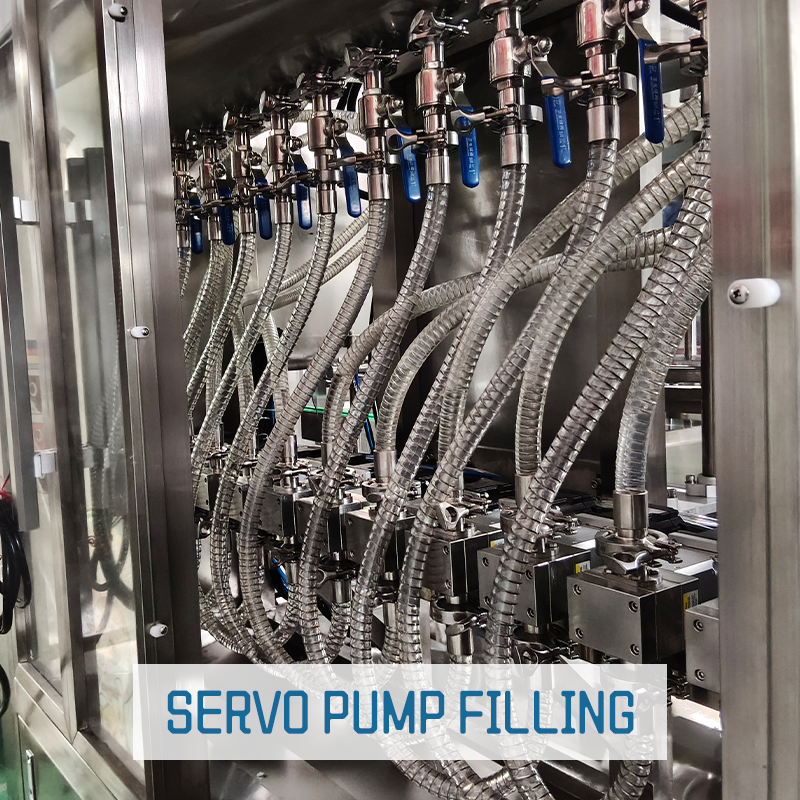

| Filling method | Servo-pump-metered multi-head filling |
| Conveyor belt specifications | 82.6 mm wide POM slat belt, ground clearance 800 mm–850 mm |
| Conveyor belt motor | Variable-frequency speed-controlled motor |
| Total power | approx. 6 kW / AC 380 V, 50/60 Hz |
| Program Control | PLC + Touchscreen HMI |
| Frame material | 304 stainless steel |
| Materials in contact with food | 304/316 stainless steel, food-grade silicone tubing |
| Safety feature | Low material level shutdown alarm |
| Air pressure | 0.6–0.8 MPa |
In-Depth Details
Equipment Features and Adjustment Instructions
1. Specification Adjustment: No additional parts are required to change filling specifications; the number of filling heads can be selected as needed to meet production capacity requirements.
2. Bottle Compatibility: Linear bottle infeed and outfeed with neck-clamping positioning; capable of filling various irregularly shaped containers.

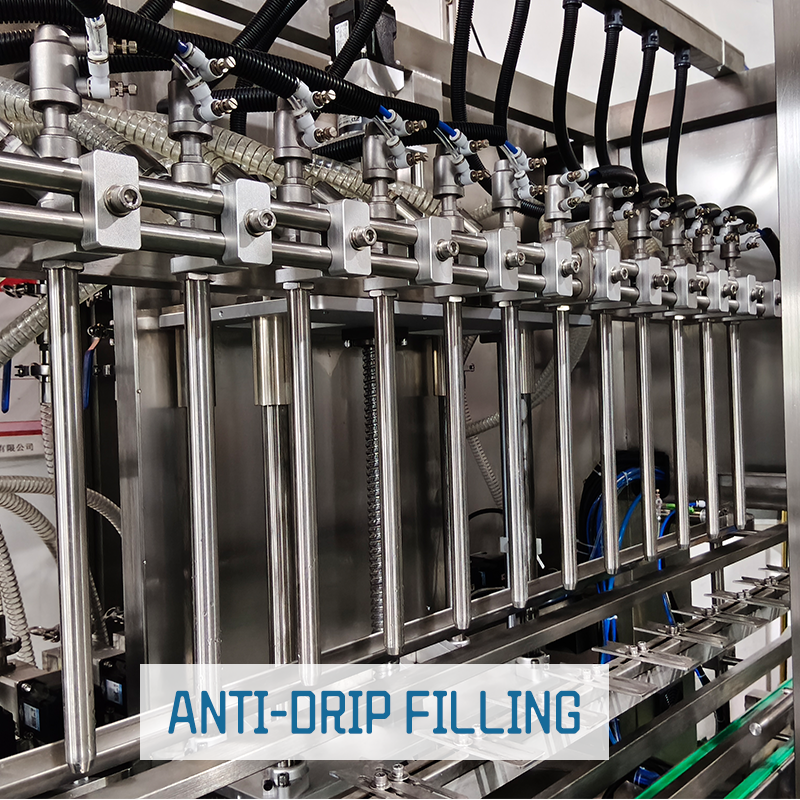

3. Filling Performance: Pneumatic filling valve design ensures drip-free and drip-free filling.
4. Operation and Debugging: PLC + color touchscreen interface allows for full touchscreen parameter configuration, real-time monitoring of operating conditions, and convenient debugging and maintenance.
