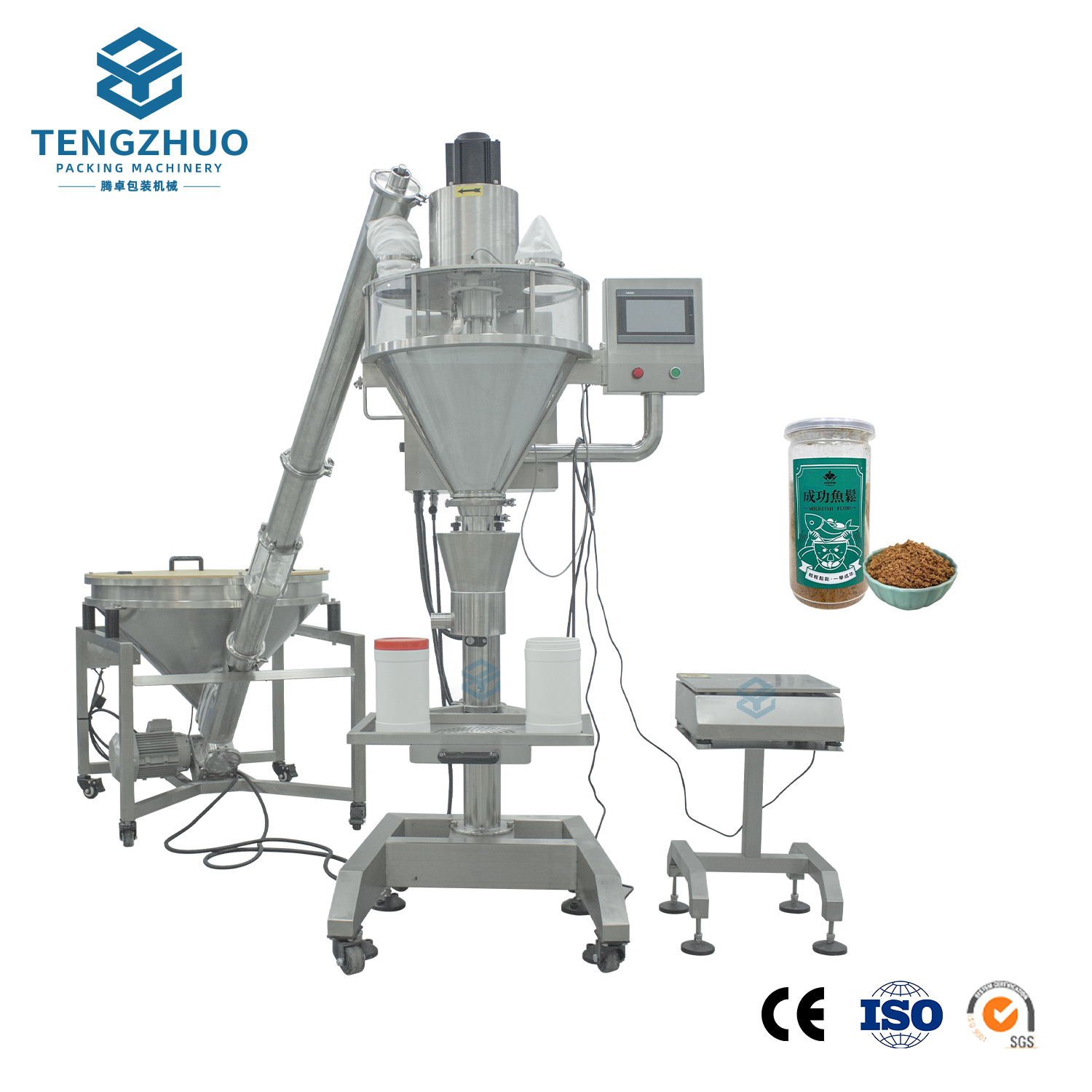

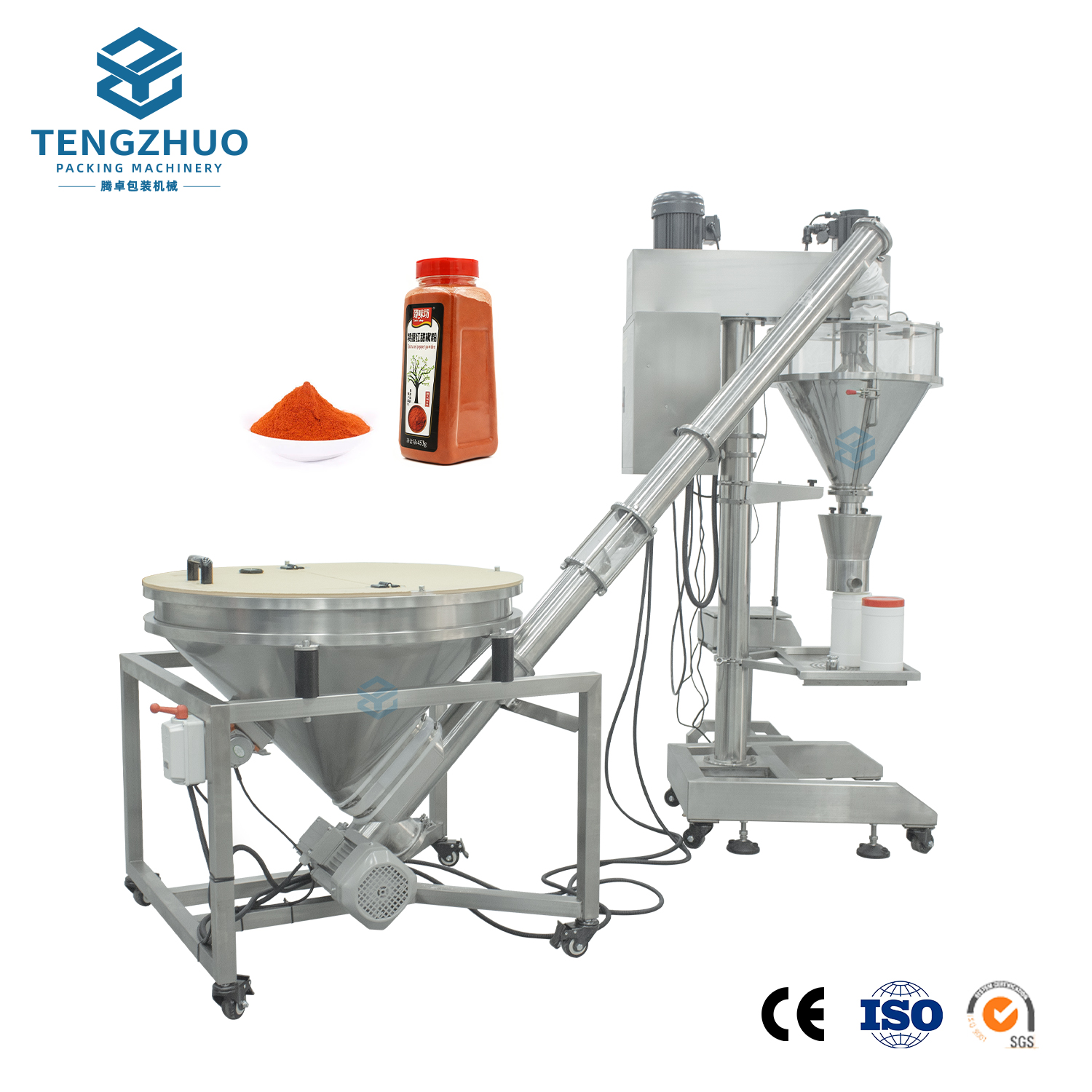

Semi-automatic powder filling machine
This semi-automatic powder filling machine is made of stainless steel, with a servo motor controlling the screw, ensuring high filling accuracy and speed; the touch screen allows for stepless adjustment of the packaging weight, supports weight feedback ratio tracking, and can be easily adapted to various materials such as ultra-fine powder to small particles by replacing the screw accessories. It is widely used in the metering and filling operations of materials such as veterinary drugs, additives, carbon powder, talcum powder, pesticides, perfumes and spices, and flour, featuring easy disassembly and cleaning as well as efficient operation.
Highlights

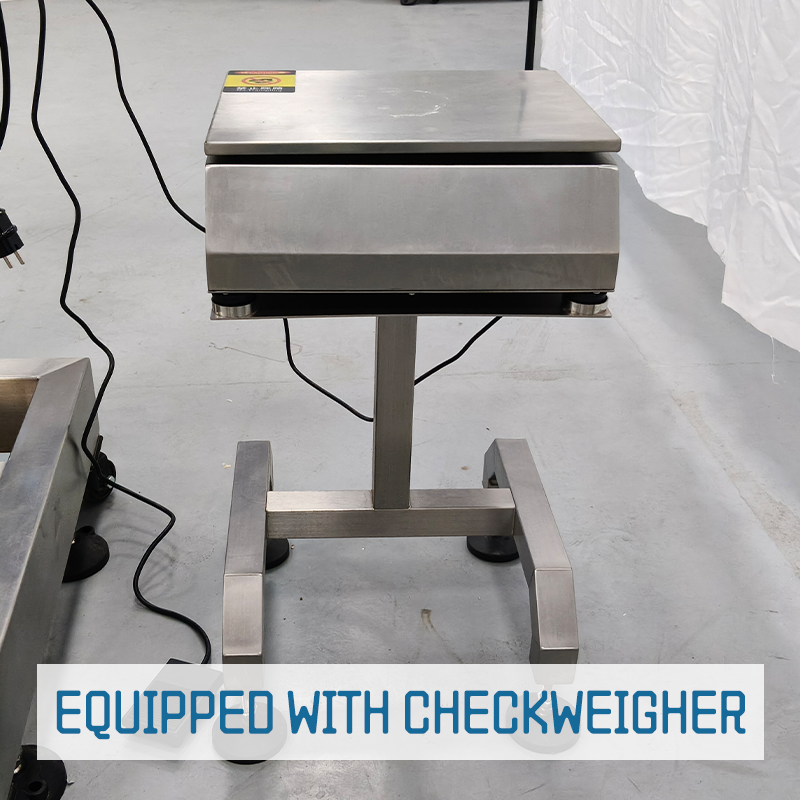

- Precise and stable: Servo motor controls screw filling, offering high precision and fast speed. Combined with weighing feedback for specific gravity tracking, it is unaffected by changes in material density.

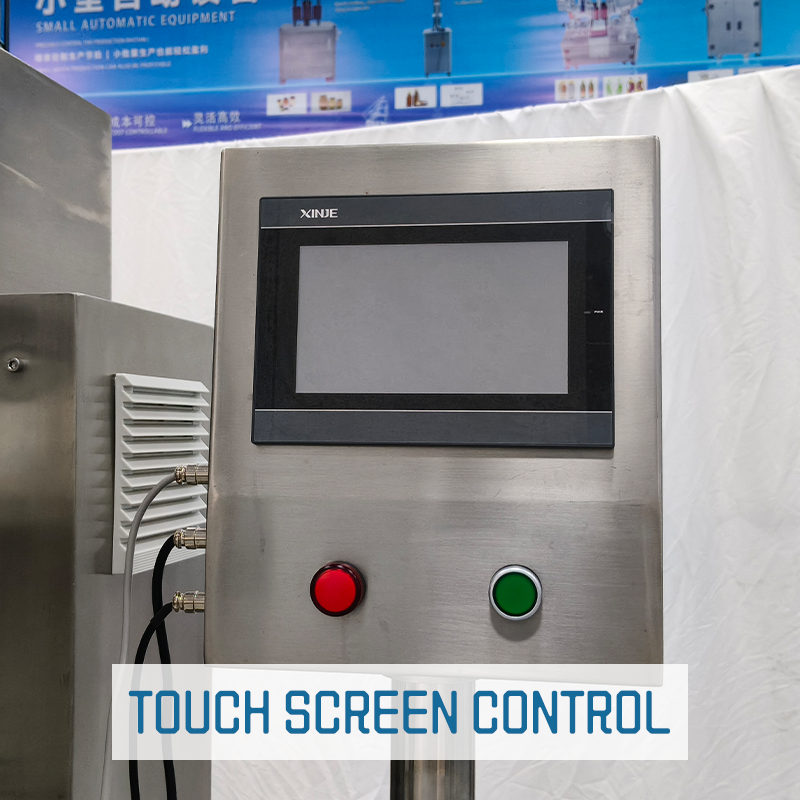

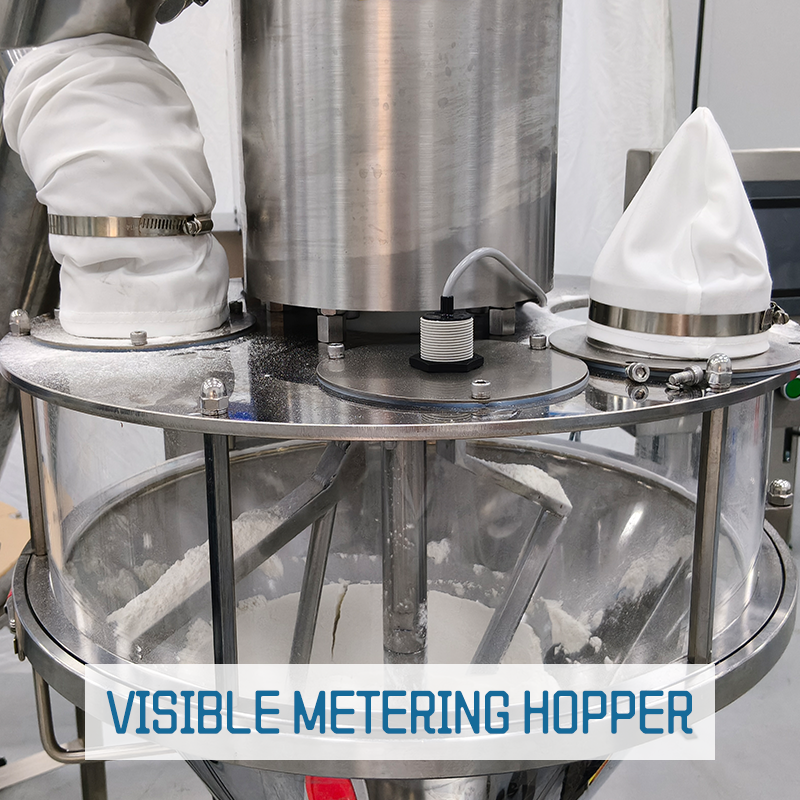

- Smart and convenient: touchscreen stepless adjustment of packaging weight, switching working modes at any time, and the hanging material box can be removed and cleaned without tools.
- Wide compatibility: Replacement screw attachments can accommodate a variety of materials from ultrafine powder to small particles, meeting diverse powder filling needs.
Technical Specifications
| Category | Parameters |
|---|---|
| Metering method | Spiral rotary filling type |
| Package weight | 1-5000 grams (screw components need to be changed for different capacities) |
| Measurement accuracy | Deviation ≤±1% (subject to material) |
| Filling speed | 5-20 bottles/minute (depending on manual bagging or loading speed) |
| Power supply | 380V 50/60Hz |
| Total power | 2 KW |
| Total machine weight | approximately 130kg |
| Material box capacity | 50L |
| PLC | China Xinjie |
| Touchscreen | China Xinjie |
| Servo motors | China Inovance |
| Powder screw feeder motor | Zhongda China |
| Sensory Optical Eye | Korean Autonics |
| Stirring motor | Zhongda China |

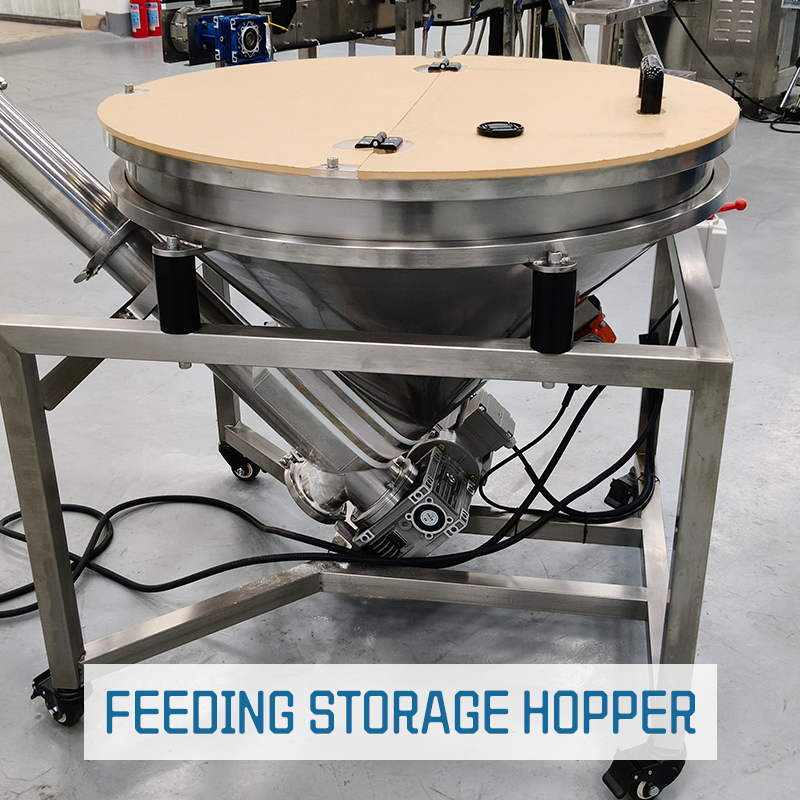

| Large bucket capacity | 150L |
| Tube diameter | 102mm |
| Power supply | 380V 50/60Hz |
| Power Rate | 1.1KW |
| Ground clearance | 1650mm |
In-Depth Details
Equipment functions and adjustment instructions
1. This semi-automatic powder filling machine uses a servo motor to control screw filling, offering high precision and fast speed. It can adjust packaging weight steplessly via the touchscreen and supports weighing feedback and specific gravity tracking
2. Replacement of screw accessories allows for adaptation to various materials ranging from ultrafine powder to small particles. The entire machine is made of stainless steel, and the suspended material box can be cleaned and disassembled without tools. Optional centrifugal or vacuum devices can meet different material filling needs and is suitable for various powder metering and filling operations.
