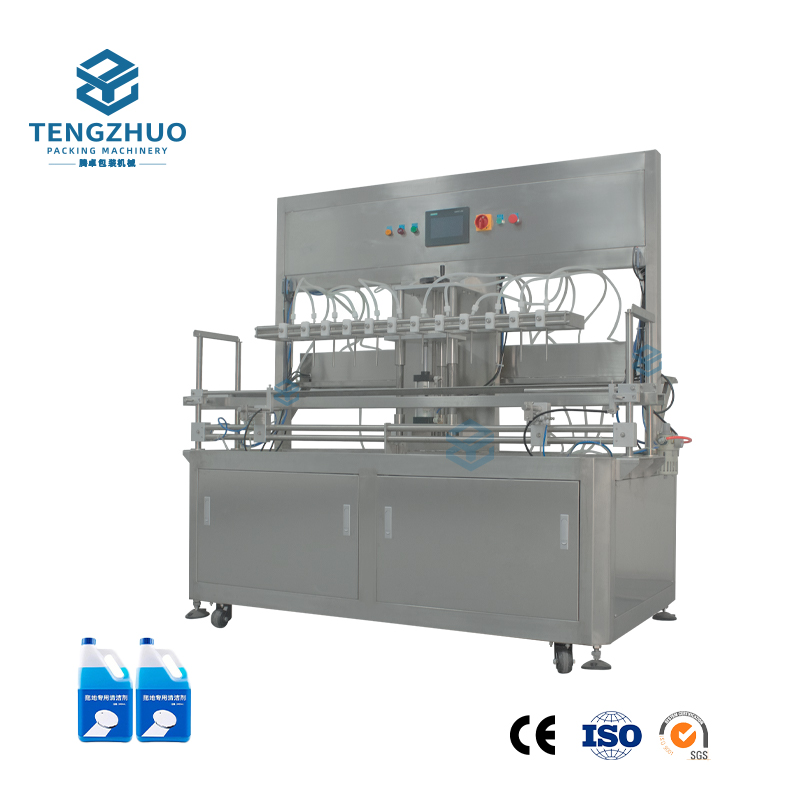

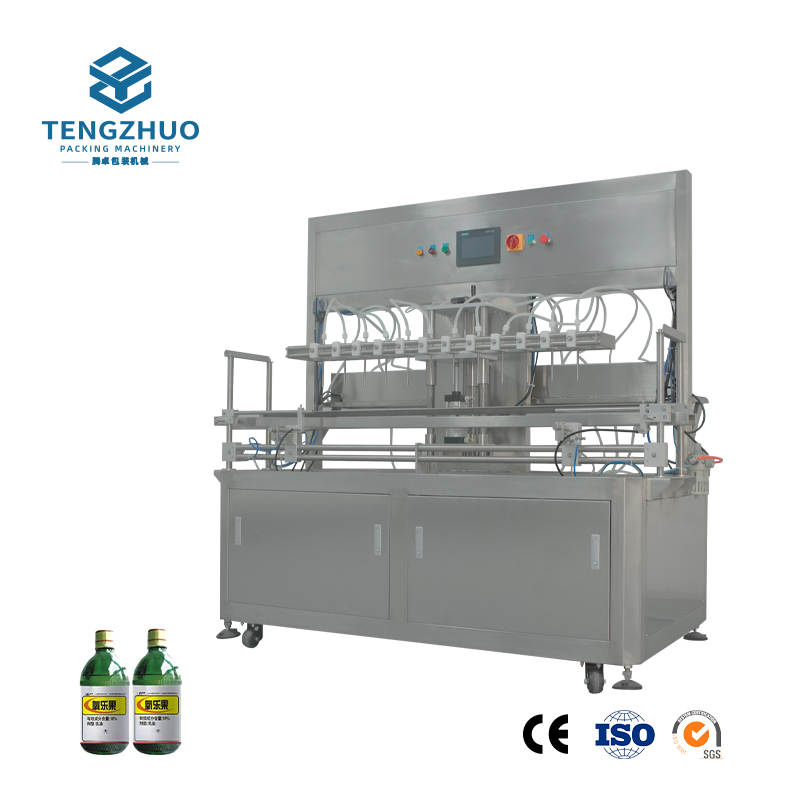

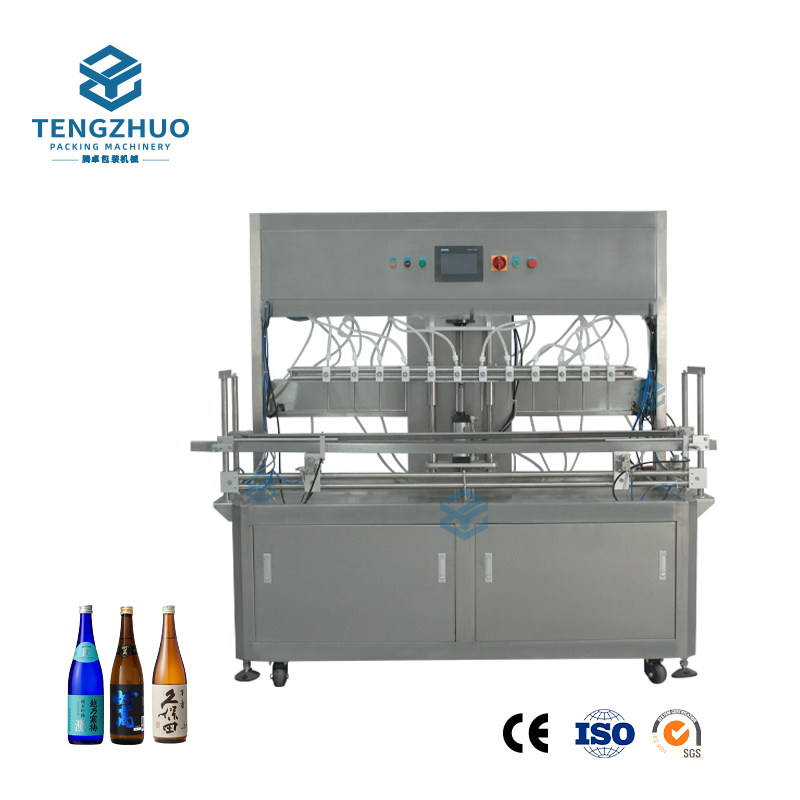

12-head fully automatic peristaltic pump filling machine

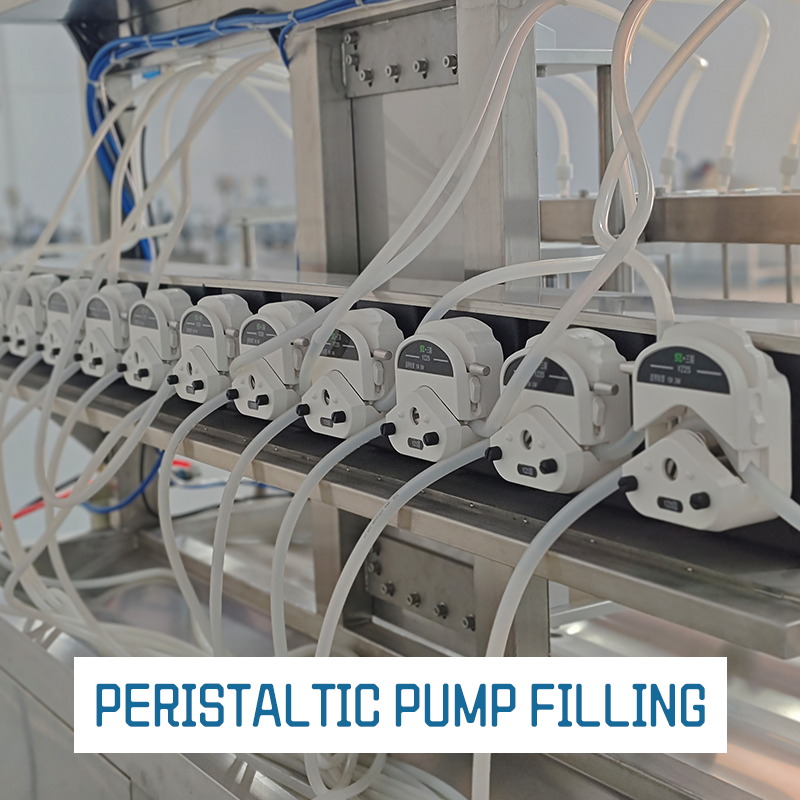

The peristaltic pump filling machine is a high-precision liquid filling device that utilizes PLC programmable control, photoelectric sensors, and pneumatic actuators. It is suitable for filling aqueous liquids starting from 5 grams and is widely compatible with various free-flowing aqueous liquids such as baijiu, soy sauce, and pharmaceuticals. The machine supports a variety of bottle shapes, allows for quick changeovers between specifications, and offers high production efficiency.
Highlights
- Highly hygienic: The pump body does not come into direct contact with the product, and the piping is easy to clean and replace, making it ideal for liquid filling applications with strict hygiene requirements.

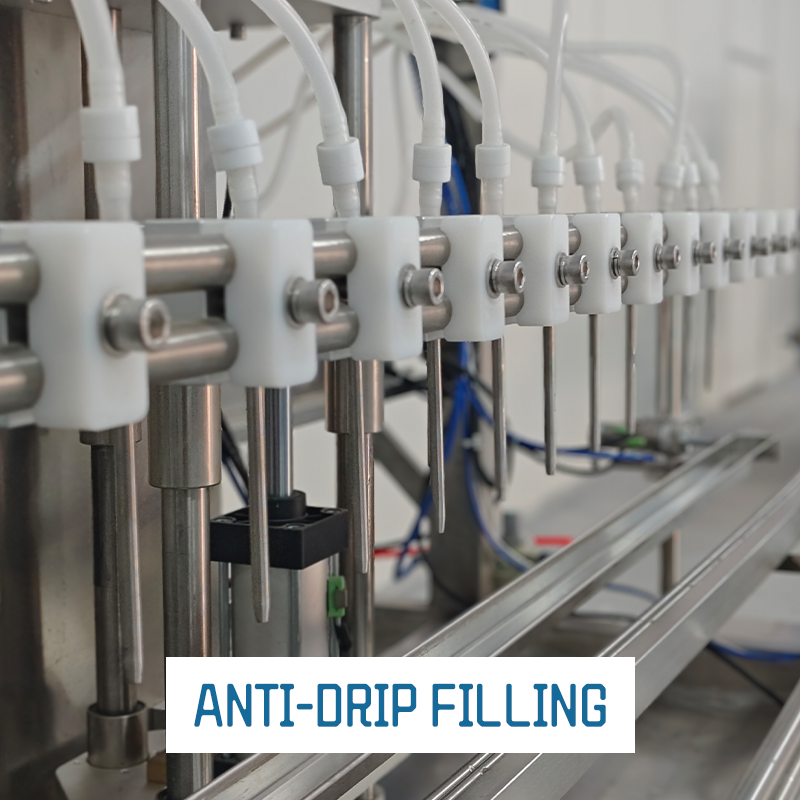

- Precise and stable filling: PLC control combined with specialized filling valves ensures drip-free and run-free filling with reliable metering accuracy.
- Highly efficient and flexible production: Filling specifications can be switched in just a few minutes, supporting multi-head customization and compatibility with a wide range of containers to meet diverse production needs.
Technical Specifications
| Category | Parameters |
|---|---|
| Number of filling heads | 4, 6, 8, 10, 12 (customizable based on production capacity) |
| Filling Capacity (mL) | Customizable starting from 5 g |
| Filling speed (BPM) | 1,000 bottles/hour (based on 6 heads at 500 ml each) |
| Power Supply (VAC) | 220V |
| Power (kW) | 3 |
| Air consumption (MIN) | 4 kg/s × 30 liters |
| PLC | Siemens (Germany) |
| Touchscreen | Siemens (Germany) |
| Pneumatic Components | Taiwan, YADEKA |
| Photoelectric Sensors | Taiwan Jiajun |
| Motor | China Yongkun |
| Frequency converter | Siemens (Germany) |
In-Depth Details
Equipment Features and Adjustment Instructions
1. Format Changeover: Adjustments for different containers and filling specifications can be completed in minutes without spare parts, making it suitable for filling liquid products in a variety of bottle types.

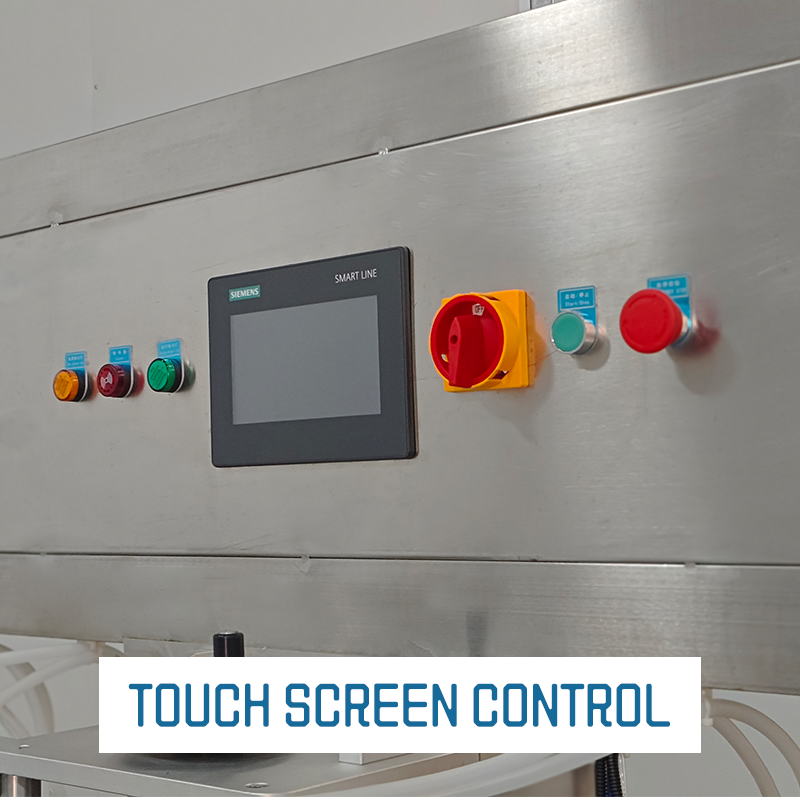

2. Filling Adjustment: Filling parameters are set via a PLC touchscreen, allowing for customization of the number of filling heads and filling volume to meet production capacity and metering accuracy requirements.

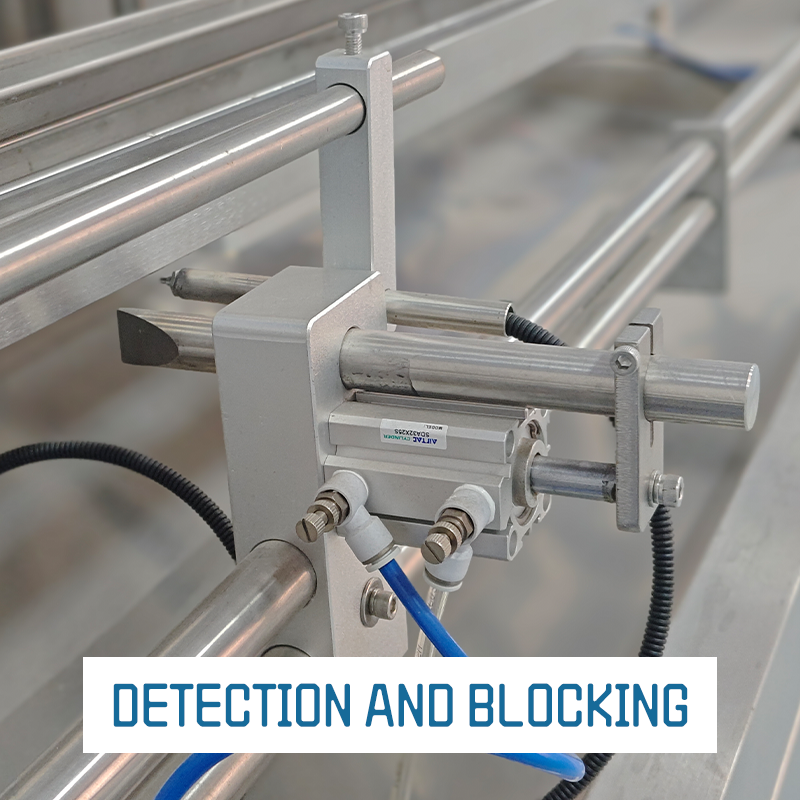

3. Production Adaptability: The linear bottle grouping and discharge structure is compatible with a wide range of container shapes; the bottle-neck clamping positioning design ensures precise alignment during filling and prevents dripping.
