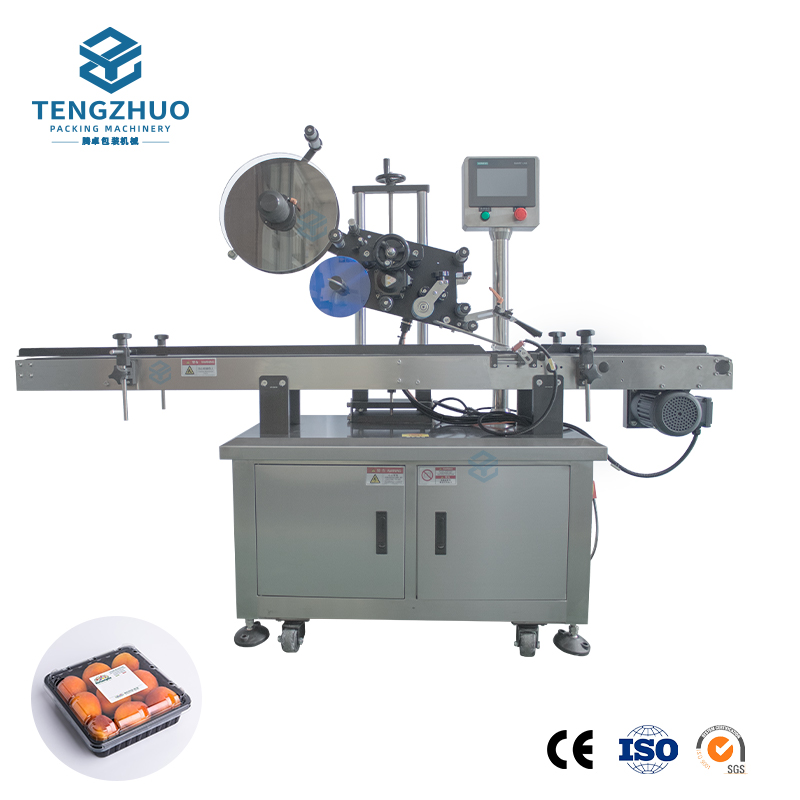

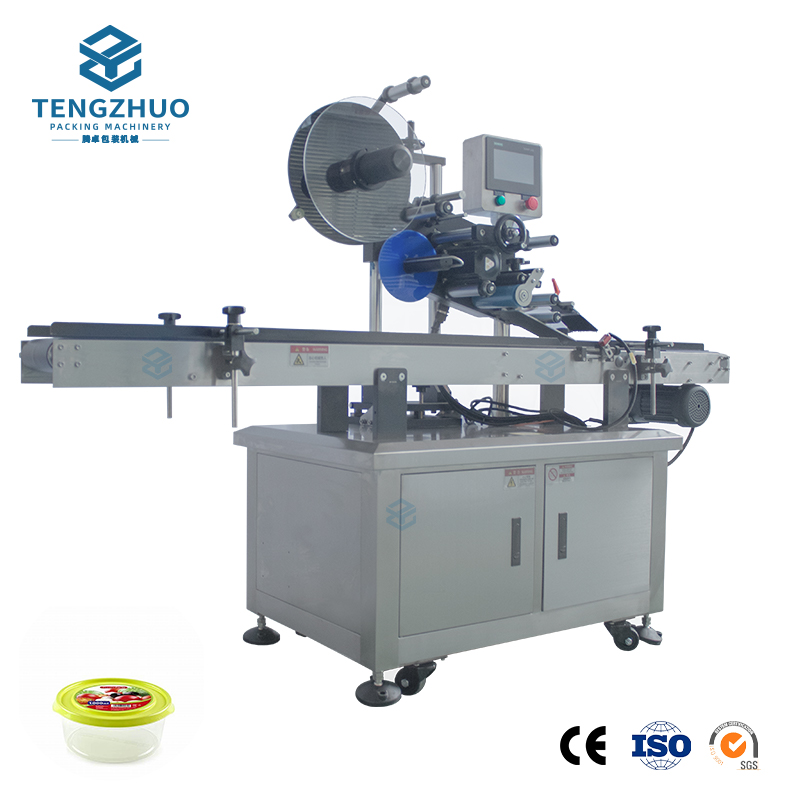

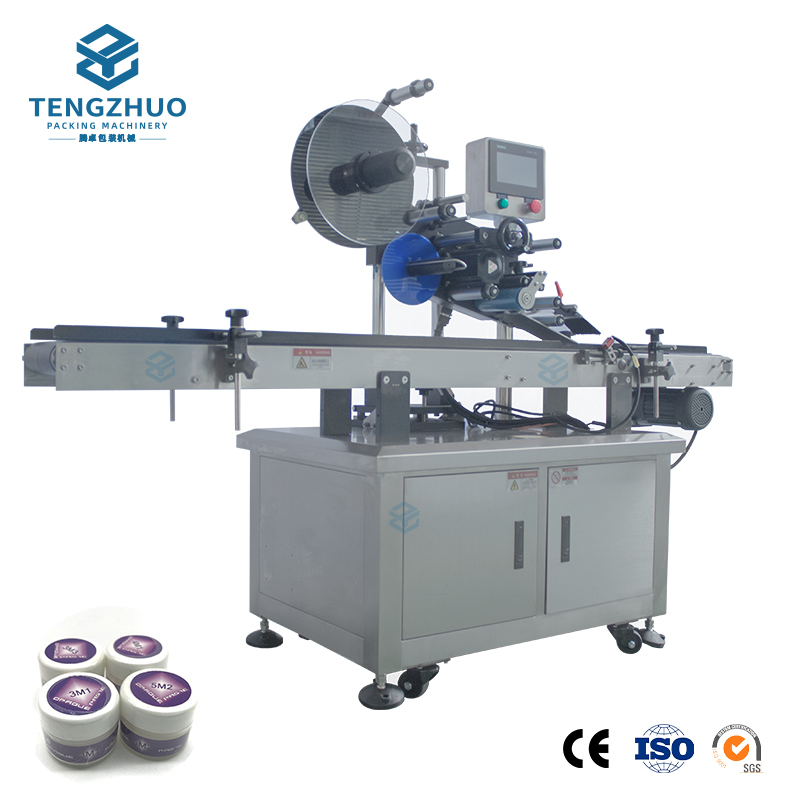

Fully Automatic Flat-Surface Labeling Machine
This fully automatic flat-surface labeling machine is specifically designed for square boxes and flat products, and is suitable for the food, pharmaceutical, and personal care industries. Equipped with photoelectric sensors and synchronous tracking technology, it ensures precise and stable labeling. With adjustable speed and user-friendly operation, it is the ideal solution for labeling flat products.
Highlights
- High-Speed, High-Precision Labeling: By integrating advanced positioning technology, this system ensures precise label application even during high-speed production, significantly boosting production efficiency and meeting the demands of fast-paced labeling operations.
- Intelligent, easy to control, and user-friendly: Equipped with an intelligent control system, it automatically adjusts labeling parameters, reducing manual intervention and operational errors while minimizing reliance on highly skilled operators.
- High Adaptability and Stability: Compatible with a wide range of flat products and labels in various sizes and materials, it can be easily integrated into existing production lines; built with high-quality materials and craftsmanship, it features a low failure rate, minimal maintenance costs, and long-term stable and reliable operation.
Technical Specifications
| Category | Parameters |
|---|---|
| Power Supply Voltage (V/Hz) | AC 220/50 |
| Total power (W) | 1250 |
| Labeling accuracy (mm) | ±1.0 |
| Applicable label range (mm) | Width ≤ 150 |
| Conveyor belt width | 200 mm |
| Output (bottles/minute) | 30–100 |
| Dimensions | (L × W × H) (mm) 2000 × 600 × 1400 |
| Net weight (kg) | 190 |
| PLC | Japan Mitsubishi |
| Touchscreen | Weintek (Taiwan) |
| Stepper Motor | Shenzhen Xingfengyuan |
| Label Photoelectric Sensor | Germany/Italy: SICK/Modi |
| Frequency Converter | China Kokken |
In-Depth Details
User Guide
1. Preparations Before Startup
– Verify the label dimensions and application position, and configure the machine’s basic parameters;
– Clean the label surface and load the label roll into the machine’s storage compartment;
– Start the preheating program; once the machine reaches operating temperature, proceed with startup.
2. Labeling Procedure

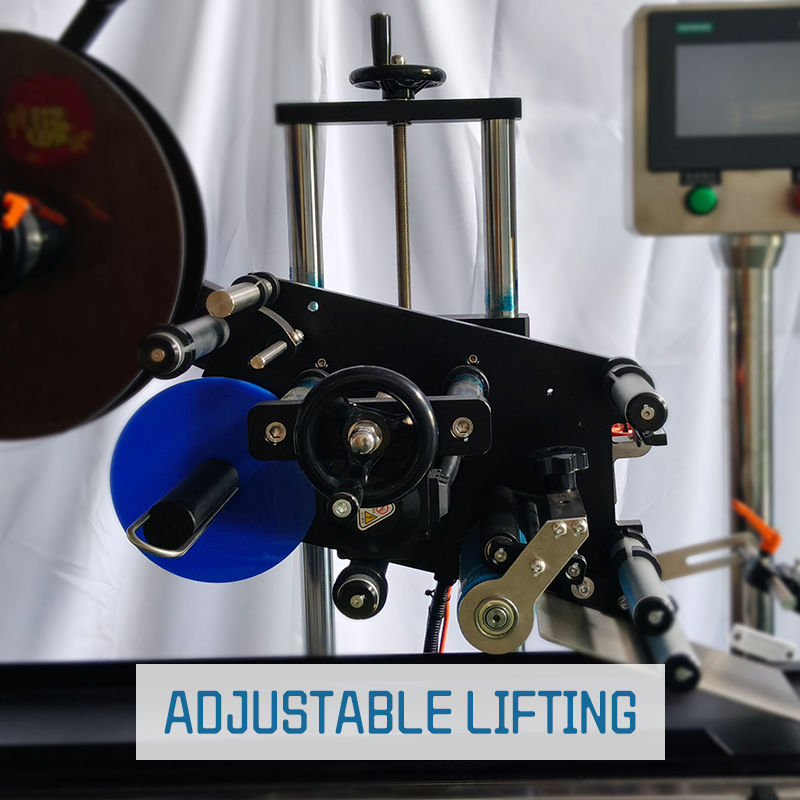

– Adjust the labeling head height and side guide positions to ensure labels feed smoothly into the labeling head;
– Set the sensor detection distance based on the label length to ensure accurate label detection;
– Place the products to be labeled on the workbench, then start the machine to begin the labeling process.
