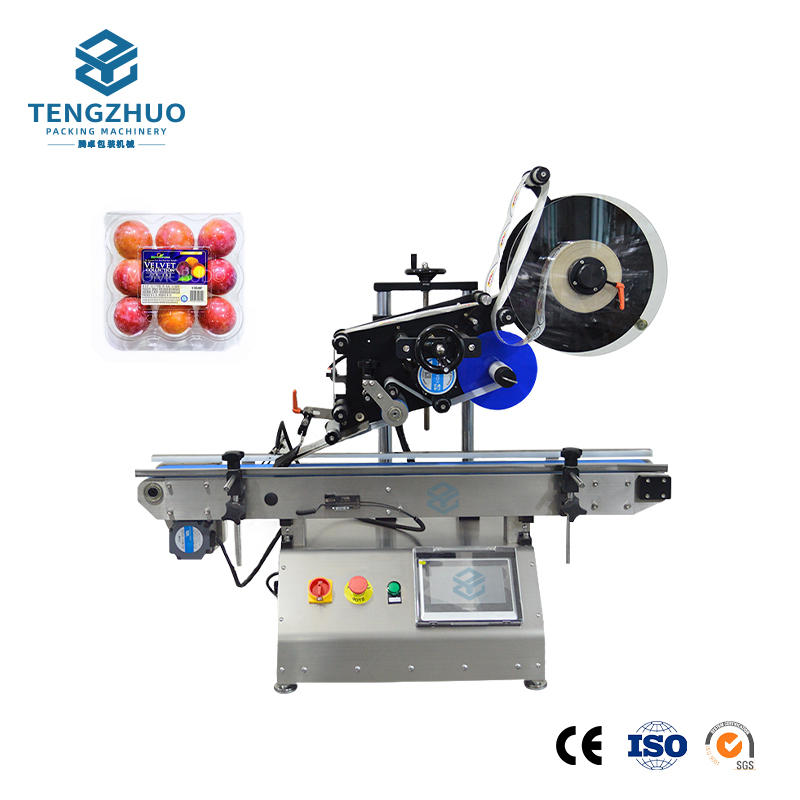

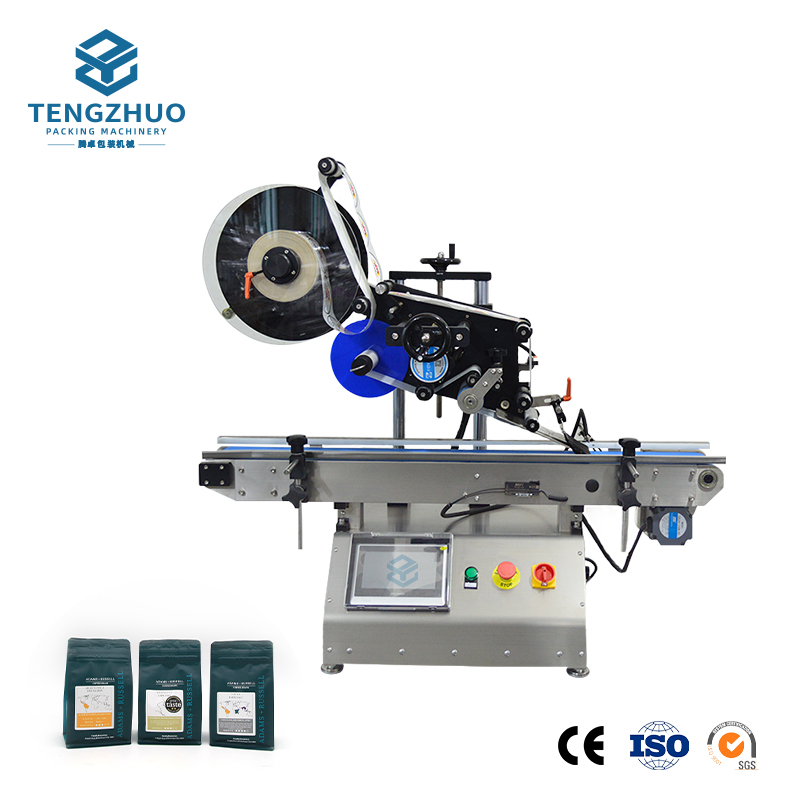

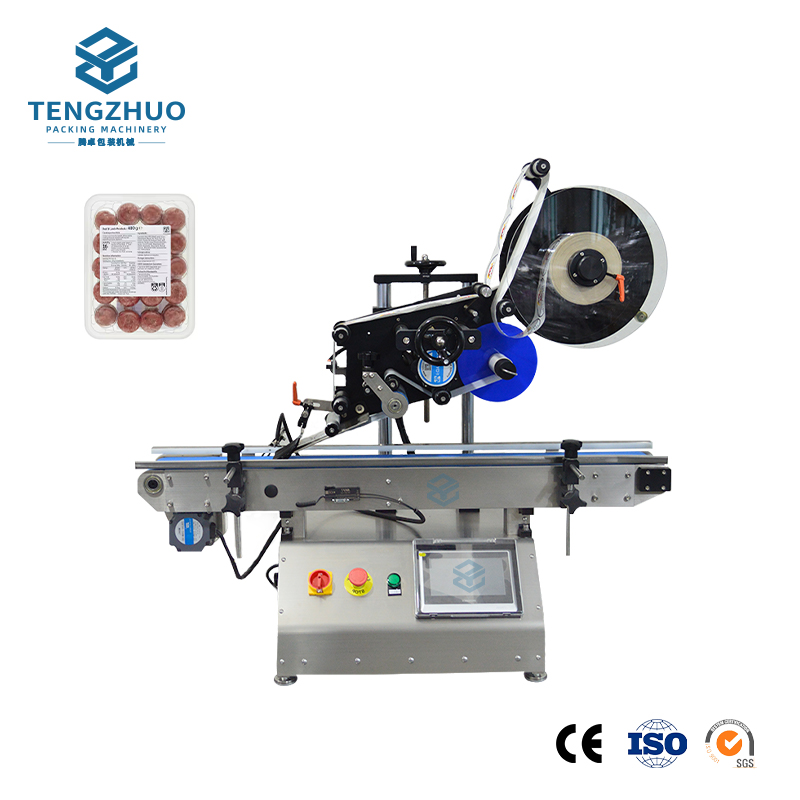

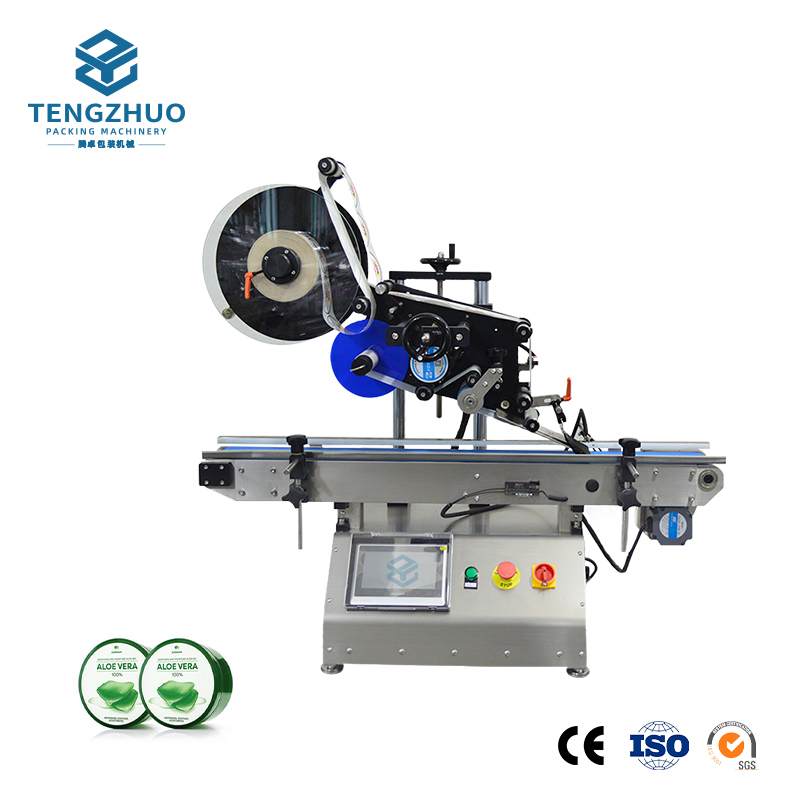

Compact Desktop Labeling Machine
Highlights
- Precise labeling with zero deviation: The synchronous tracking system eliminates label stretching and lag, ensuring labels are applied smoothly and meeting the height requirements for anti-counterfeiting labels.
- Efficient and easy to use: One-touch speed adjustment via the touchscreen, quick changeovers, and no complicated setup required—even new operators can get up to speed quickly.
- Compact, durable, and versatile: This desktop model has a small footprint, a corrosion-resistant body that’s easy to clean, and is suitable for labeling in a wide range of industries and scenarios.
Technical Specifications
| Category | Parameters |
|---|---|
| Power Supply Voltage (V/Hz) | AC 220/50 |
| Total power (W) | 1000 |
| Labeling accuracy (mm) | ±1.0 |
| Applicable label range (mm) | Width ≤ 100 |
| Conveyor belt width | 200 mm |
| Output (bottles/minute) | 30–100 |
| Dimensions (L×W×H) (mm) | 2000×600×1400 |
| Net weight (kg) | 80 |
| PLC | Mitsubishi (Japan) |
| Touchscreen | Taiwan Weintek |
| Stepper Motor | Shenzhen Xingfengyuan |
| Cebiao Optoelectronics | Germany/Italy: SICK/Modi |
| Frequency Converter | China Kokken |
In-Depth Details
Equipment Features and Adjustment Instructions
1. Labeling Function: Automatically applies self-adhesive or anti-counterfeiting labels to the surfaces of square boxes and flat objects. The system uses photoelectric sensors and a synchronous tracking system to precisely synchronize label dispensing with conveyor speed, eliminating label stretching and lag issues and ensuring smooth, stable labeling.

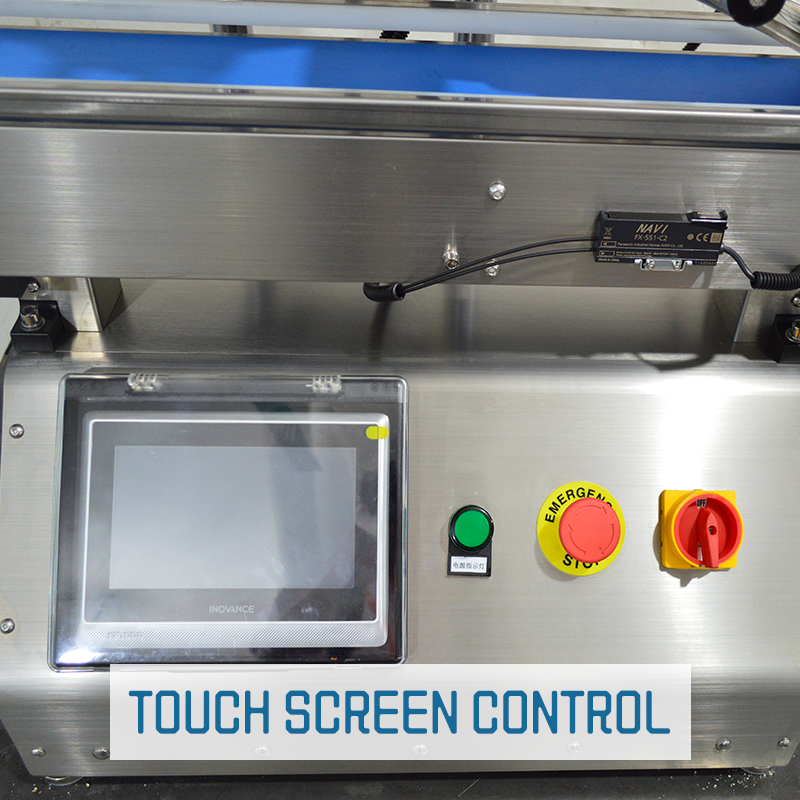

2. Speed Adjustment: Labeling speed and conveyor belt speed can be adjusted steplessly via a single touch on the smart touchscreen, accommodating various production cycle requirements.

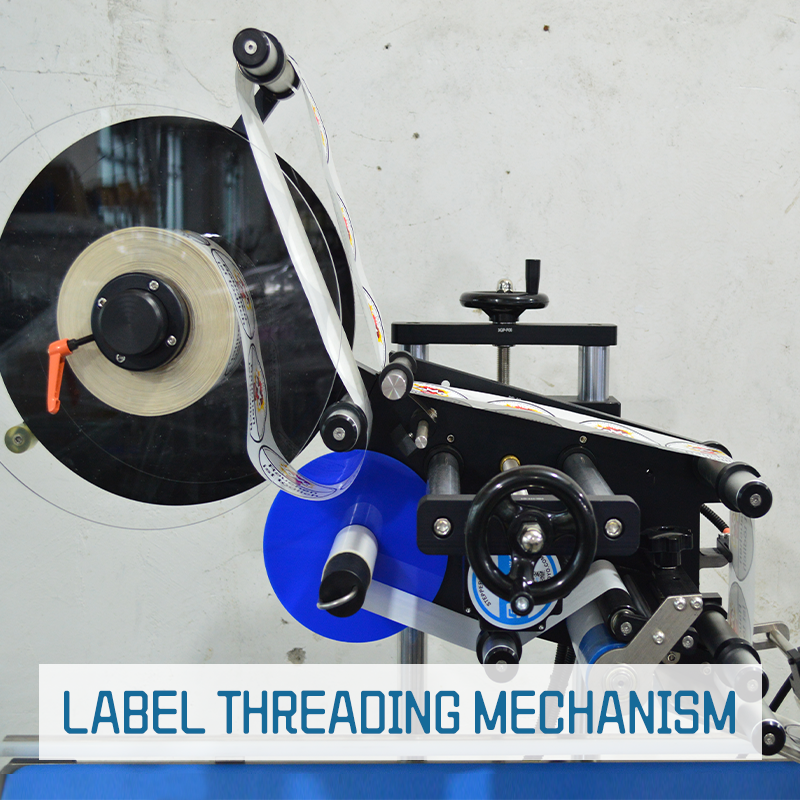

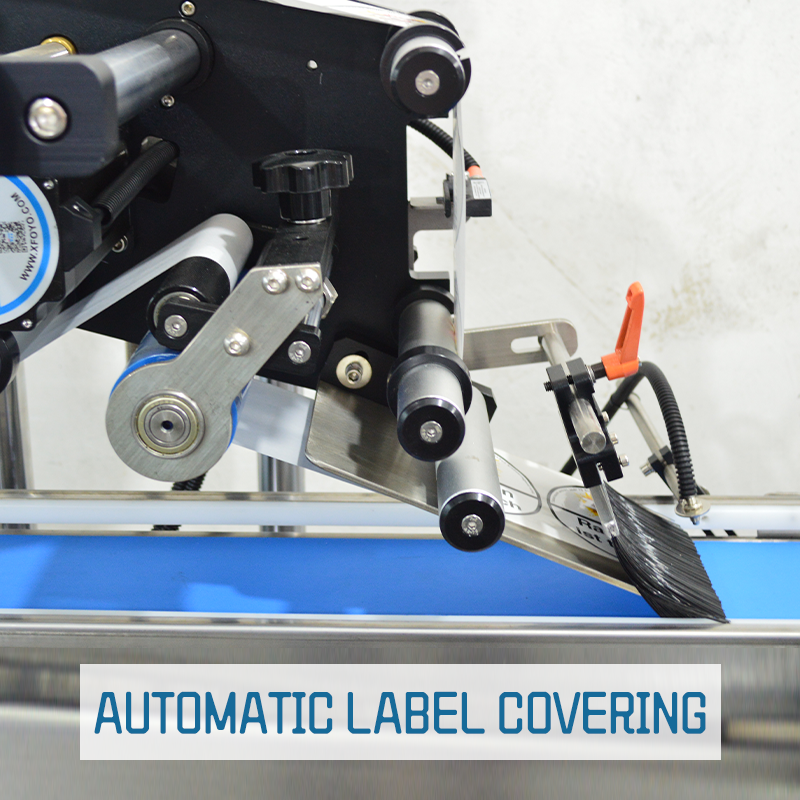

3. Mechanical Calibration: The distance between the labeling rollers and the peel plate can be precisely adjusted. Combined with a flexible labeling pressure roller, this ensures high-precision adhesion for anti-counterfeiting labels and other applications.
4. Changeover: No complex mechanical adjustments are required; changeovers take only a few minutes, allowing even new employees to get up to speed quickly.
